MCH Hair Straighteners Portable Heating Devices

2024-06-06 12:10

MCH Hair Straighteners Portable Heating Devices Ceramic Heaters

Experience salon-quality hair styling anywhere with our MCH Hair Straighteners Portable Heating Devices - Featuring advanced ceramic heaters for sleek and straight hair!

Hair straighteners use the principle of heat denaturation of proteins to straighten hair. So a good hair strTeejoin Smart Appliance in addition to the general salon-specific professional flat iron hair straightener, there is also on the market with our wireless hair straightener and Bling portable hair straightener, the use of MCH ceramic heating pads, 30S warming up to 160 ° C, 60S warming up to 180 ° C-200 ° C, to give customers the ultimate experience.aightener requires a quality performance heating element. People usually choose ceramic heating elements as hair straightener heater elements because ceramic heaters heat up quickly and without open flames, durable and resistant to acids and alkalis. It is very suitable for application in flat iron hair straightener and portable hair straightener!

MCH Ceramic Heaters and PTC Ceramic Heaters

But the flat iron hair straightener on top of the ceramic heating pad is roughly divided into two kinds, respectively: MCH ceramic heating pad and PTC ceramic heating pad.

MCH Hair Straightener

In fact, the material used in these two products is completely different, only the finished product is similar to ceramics, so they are collectively referred to as “ceramic heating element”. In the case of 220V voltage, MCH ceramic heaters are faster than PTC ceramic heaters, you can refer to the power and heating area of the two types of heating elements; and in the same power, MCH ceramic heaters are more energy efficient than PTC ceramic heating elements; MCH ceramic does not contain aluminum material, will not pollute the environment.

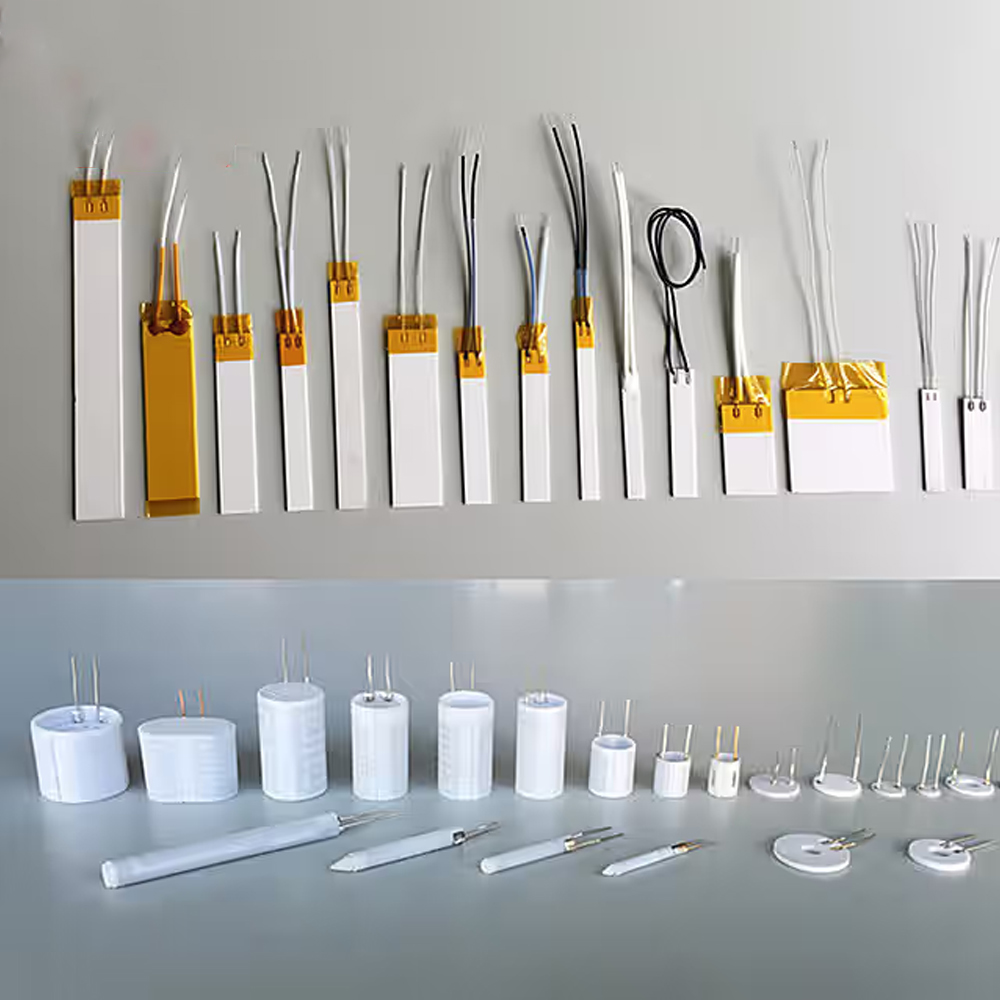

MCH is the abbreviation of Metal Ceramic Heater, foreign English name Alumina Heater. It means Metal Ceramic Heater, Alumina Heater, MCH is a metal tungsten or molybdenum-manganese and other high melting point metal heating resistor paste according to the requirements of the heating circuit design printed on 96% alumina cast ceramic billet, after stacking and hot-pressing, and then sintered under the protection of the atmosphere of 1600 ℃ reduction and become. There are two types of lead wires: copper wire and nickel wire, Teflon casing or glass fiber silicone casing for lead wire insulation, and one-component insulating silicone or polyimide tape for electrode insulation.

Characteristics: Ceramic and metal co-sintered ceramic heaters, with corrosion resistance, high temperature resistance, long life, energy efficiency, temperature uniformity, good thermal conductivity, thermal compensation speed, etc., and does not contain lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers and other hazardous substances, in line with the European Union RoHS and other environmental protection requirements.

According to the local language habits can also be called MCH heating pad, MCH ceramic heating pad, metal ceramic heating pad, alumina ceramic heating pad, high temperature ceramic heating pad, portable ceramic electric heating pad, HTCC ceramic heating element, HTCC ceramic heating element heating assembly.

MCH hair straightener ceramic heating pad main raw materials and performance characteristics

Main raw materials in MCH hair straightener ceramic heating pad include MCH (metal-ceramic heating) elements, ceramic plates, and high-quality plastic housing. The MCH heating element provides rapid and even heat distribution, ensuring consistent heat for efficient straightening. The ceramic plates glide smoothly through hair, minimizing damage and static. The high-quality plastic housing keeps the device lightweight and durable for portable use. Overall, the MCH hair straightener ceramic heating pad offers quick heating, precise temperature control, and gentle styling for smooth and sleek hair.

Portable Hair Straightener

2). Bling Hair Straightener ceramic heating sheet main raw materials

Base plate: white multi-layer alumina ceramic, 96% Al2O3

Lead wire: Ф0.25mm, Ф0.3mm, Ф0.5mm, Ф0.6mm, Ф0.8mm, Ф1.0mm nickel or copper wire

Casing, tape: Teflon, high temperature tape

Resistance: tungsten and other high temperature materials

Thickness: 0.6~2.0mm can be customized

Voltage: 3.7V-240V can be customized

Resistance value: between 0.2~1300 ohm, selected according to voltage, chip size power and customer demand.

3) . Wireless hair straightener performance and characteristics

a, simple structure, small volume, external dimensions and resistance power can be produced according to customer demand;

b, good thermal uniformity, high power density: 30W~60 W/cm2;

c, resistance-temperature change linear, can control resistance or voltage convenient control of temperature;

d, rapid heating, temperature compensation; special models of no-load heating start 10S temperature of 600 ℃ or more;

e, rapid heating, high heating temperature, the heating element can reach 700 ℃ or more, the heating tube can reach 1000 ℃ or more;

f, high thermal efficiency, uniform heating, energy saving (unit heat power consumption than PTC to save 20-30%);

g, no, open flame, surface safety is not charged; good insulation: surface safety is not charged: can pass the 3700V/1S voltage resistance test, leakage current is less than 0.5mA;

h, long life, no power attenuation for long time use, the heating pad is resistant to acid and alkali and other corrosive substances;

i, environmental protection, does not contain lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers and other harmful substances, in line with the EU environmental requirements.

MCH ceramic heating pad and PTC ceramic heating pad application scope:

Now commonly used in communication equipment, environmental protection instruments, industrial baking equipment, electric bonding device, water, oil and acid-alkali liquid heaters, hair styling (Bling Flat Iron hair straighteners, curling irons), heaters, cigarette lighters, electronic cigarettes, aromatherapy stoves, cooling and heating air-conditioners, instantaneous hot water heaters, instantaneous taps and other rapid heating devices, multi-functional microwave ovens, ovens, ovens, dryers, cell phone machines, air conditioning fans, air fresheners, hot water kettles, Coffee pot, medical treatment, infrared physical therapy equipment, intravenous fluid heater, etc.

If you are interested in our Hair Blow dryer Multi Styler and Bling Flat Iron Hair Straightener products, please leave us a message, the business will contact you in time!
